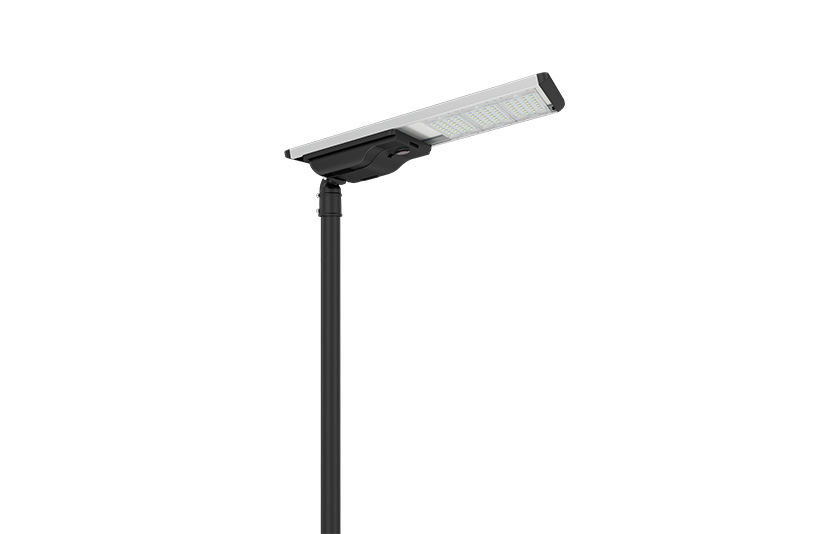

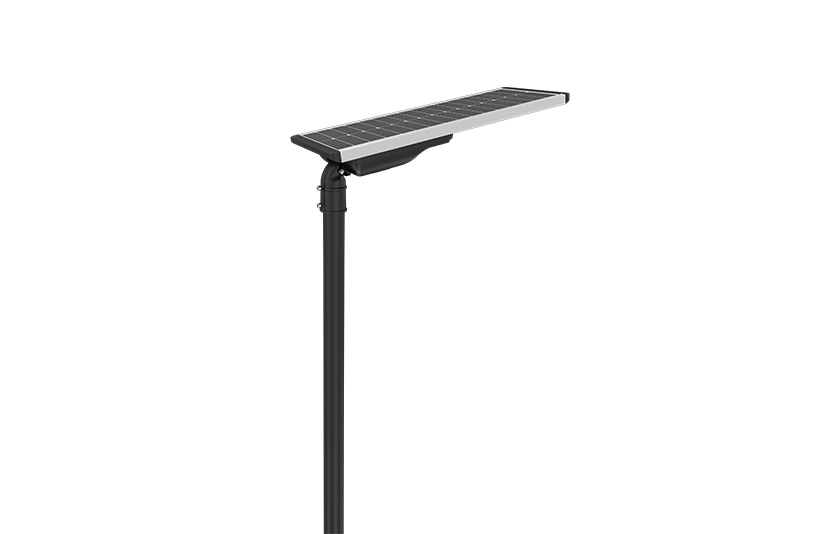

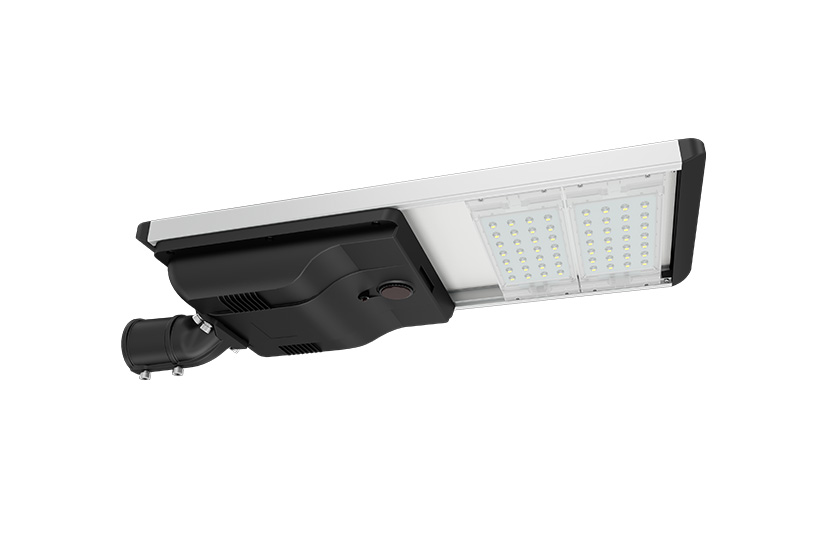

PV5 Series All in One Solar Street Light

The integrated design of the PV5 series all in one solar street light incorporates the solar panel, lithium battery, controller, and LED light into a single unit. The incorporated PV5 solar street light has a 220lm/W overall illumination efficiency.

  • Watts: 10-120W
  • Light Efficiency up to 220lm/w
  • All in one design, easy for installation
  • Smart MPPT controller realizes intelligent control of lamps
  • 2.4G wireless communication which can realizes remote control
  • Deep cycle lithium battery(LiFePo4), charge and discharge over 2, 000 times

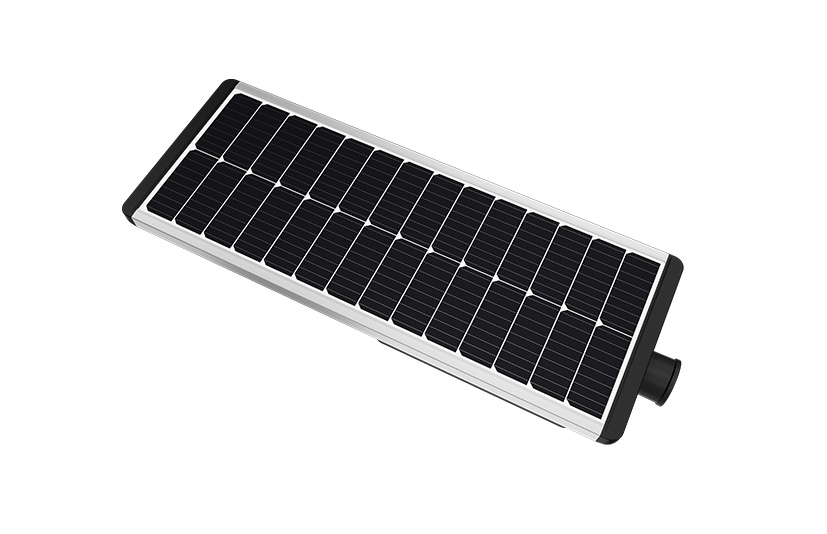

  • Monocrystalline silicon solar panels with high photoelectric conversion efficiency
  • CE, ROHS, IP66, MSDS certified
  • Smart Control: Daylight sensor, Motion/PIR sensor, Timer dimming
Specification_PV5 Series All in One Solar Street Light
Installation Manual_PV5 Series All in One Solar Street Light

By maintaining the same level of illumination while consuming less energy, its high luminous efficiency substantially reduces the strain on solar panels and batteries, which ultimately results in a cost reduction. The conversion efficiency of its monocrystalline silicon solar panels is 23%, and the lithium battery is capable of withstanding more than 2000 charge-discharge cycles. Integrated design and efficient solar energy utilization render the PV5 the optimal option for illuminating off-grid, underdeveloped regions and remote areas.

Solar Street Light
Solar Street Light
Series No Series PV5
Power 40W, 50W, 60W, 80W, 100W, 120W
Efficacy 220lm/W
Input Voltage DC12/24V
Battery Spec 230-691WH
Solar Panel Spec Monocrystalline silicon 65W/70W/100W/120W
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -20°C to + 60°C
Beam Angle Type II, Medium
Mounting Option Post Top, Side Entry
Warranty 3 Years
Certification CE, ROHS, LM80, TM-21
Control Motion sensor, PIR sensor, Timer dimming, Daylight sensor


For optimal performance, the solar panel is an essential component of your solar street light and must be kept clear. Regularly inspect the panel for grime and debris, and if necessary, remove it with a soft cloth. Additionally, you should routinely inspect the panel for fractures and other damage, and replace it if required.
