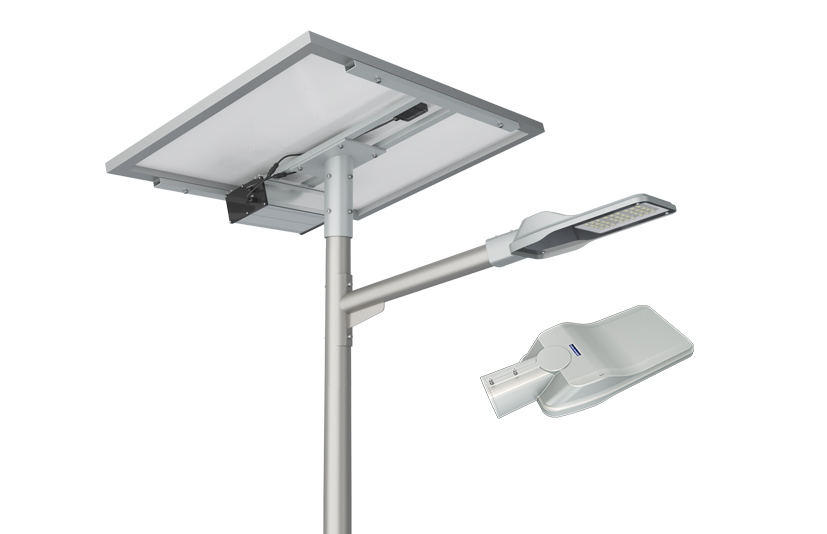

Nova Series Split Solar Street Light

The split design of the Nova series of split solar street light is evident. 140 lumens per watt is the overall lighting efficiency of Nova split solar street lamps. Employ a premium, brand-new lithium iron phosphate (lifepo4) battery that is equipped with an integrated regulator for voltage stabilization and current restriction.

  • Wide power range: 20W~150W
  • High Lumen output up to 140lm/w
  • Monocrystalline silicon solar panels
  • Smart MPPT controller realizes intelligent control of lamps
  • High end battery improves the reliability of the luminaire
  • Capacity of panels and batteries can be customized
  • Long lifespan with L70>100000hrs
  • Multiple lighting control options are available, e.g. photocell, timer dimming
Specification_Nova Series Split Solar Street Light
Installation Manual_Nova Series Split Solar Street Light

By intelligently monitoring the battery voltage, this controller ensures that the lithium battery pack is not harmed by an output voltage that is either excessively high or low. In doing so, the battery’s lifespan is extended. Despite its straightforward architecture, the system exhibits exceptional efficacy. The lithium battery and controller device are stable and straightforward to integrate and maintain. Nova split solar street lights are appropriate for illumination in off-grid regions, residential and commercial areas, roadways and squares, pedestrian and bicycle paths, and parking lots.

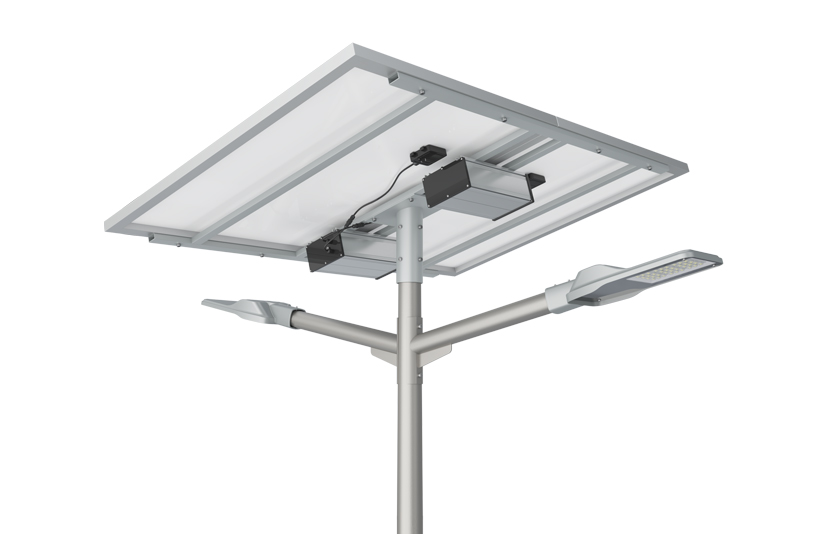

Split Solar Street Light
Integrated Solar Street Light
Series No Series NOVA
Power 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W
Efficacy 140lm/W
Input Voltage DC12/24V
Battery Spec 307-1843WH
Solar Panel Spec Monocrystalline silicon 60W/80W/100W/120W/130W/150W/160W/200W
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C up to +50°C
Beam Angle Type II, Medium
Mounting Option Post Top, Side Entry
Warranty 3 Years
Certification CE, ROHS, LM80, TM-21
Control Motion sensor, PIR sensor, Timer dimming, Daylight sensor

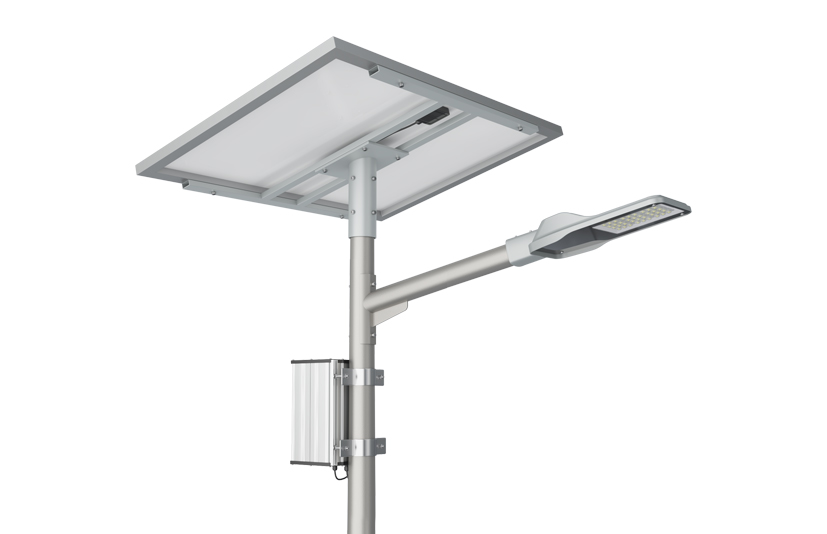

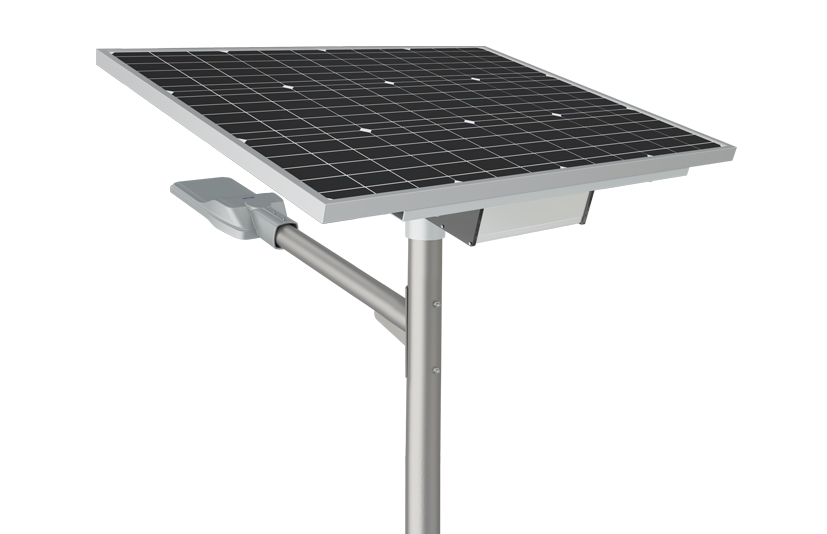

The three primary components of a split solar street light are the battery case, the lighting fixture, and the solar panel. Solar panels are typically affixed to the wall or affixed to the summit of a street light pole. The illumination fixture typically comprises an LED street light and a smart controller and is installed independently from the solar panels.
