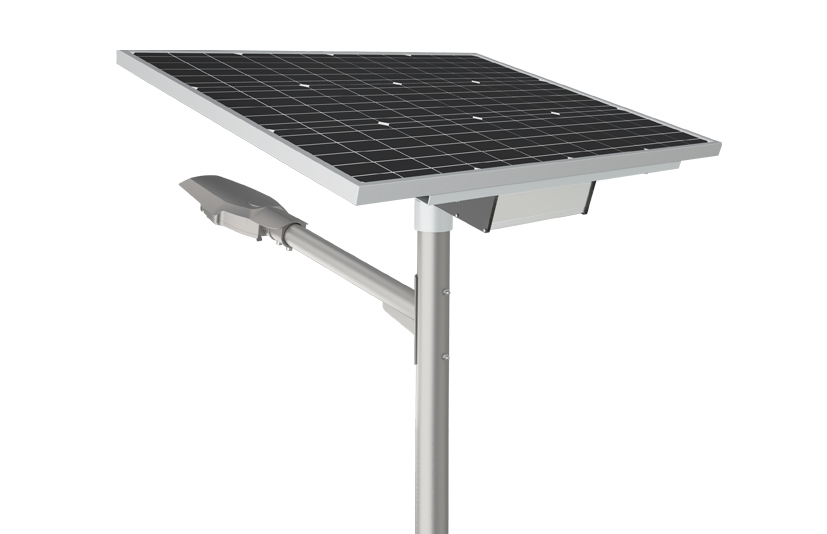

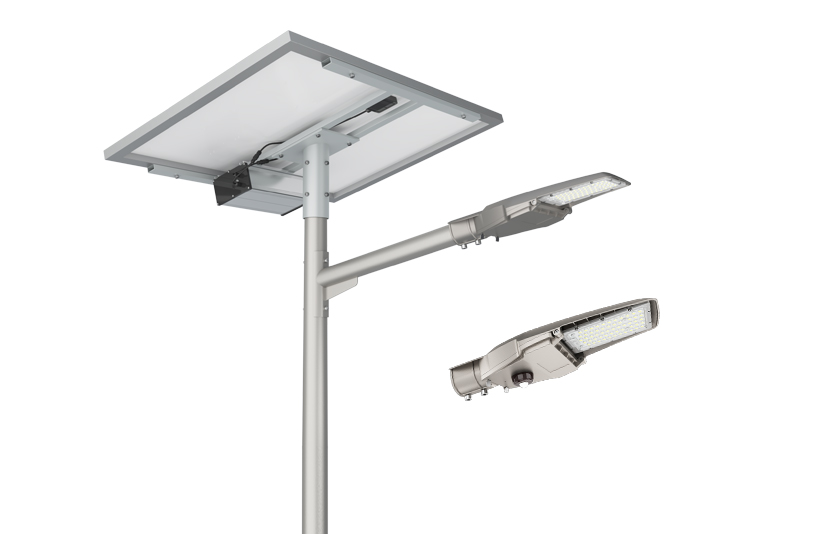

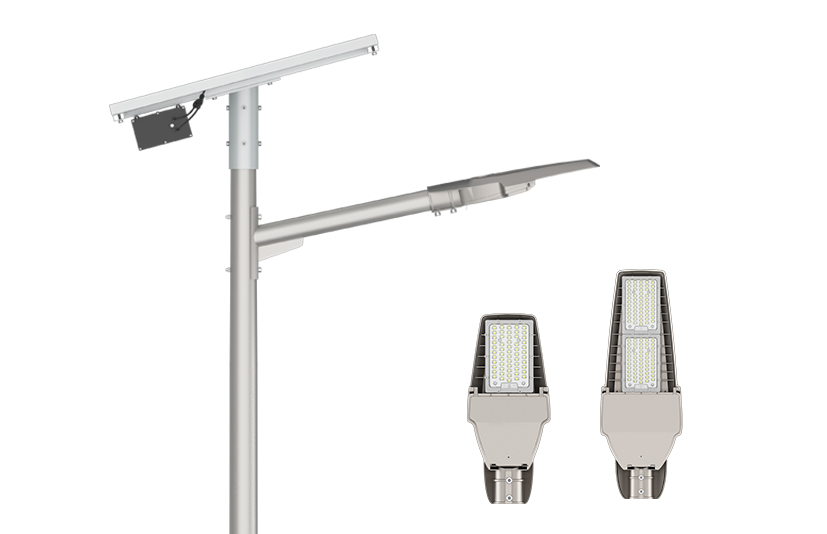

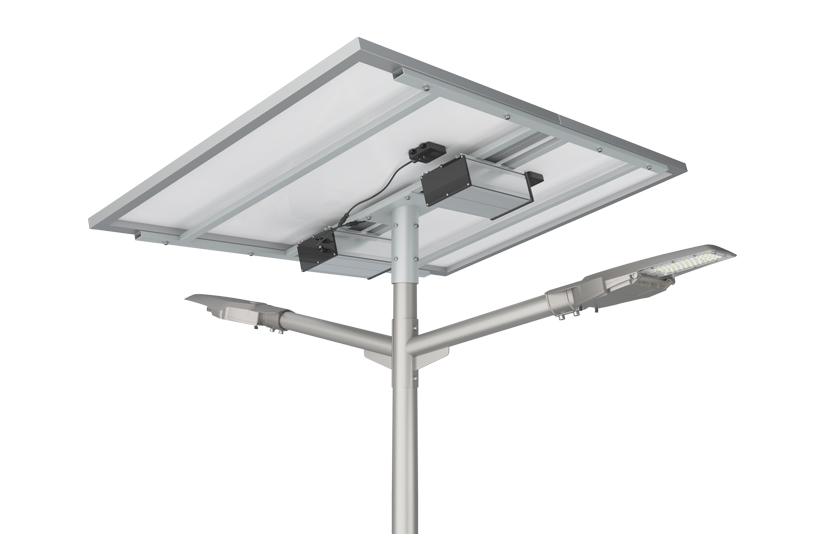

Leaf Series Solar Powered Street Lamp

The Leaf series of solar-powered street lamps are comprised of monocrystalline solar panels with a high conversion efficiency, deep-cycle batteries, and an integrated lithium battery/controller unit to ensure the system’s stable operation. The Leaf series of street lights employs superior Lumileds processors that produce up to 180 lumens per watt. Presently, this lamp has the maximum light efficiency of all ZGSM lamps and is an ideal complement to solar energy systems.

  • Wide power range: 20W~150W
  • High Lumen output up to 180lm/w
  • Monocrystalline silicon solar panels
  • Smart MPPT controller realizes intelligent control of lamps
  • High end battery improves the reliability of the luminaire
  • Capacity of panels and batteries can be customized
  • Long lifespan with L70>100000hrs
  • Multiple lighting control options are available, e.g. photocell, timer dimming, motion sensor.
Specification_Leaf Series Solar Powered Street Lamp
Installation Manual_Leaf Series Solar Powered Street Lamp

To accommodate fluctuations in nocturnal traffic flow on the road, ZGSM suggests the implementation of a dimming profile and provides customers with the ability to personalize the dimming curve. Customers may also select light poles from ZGSM for the installation of these solar street lamps. All accessories, including cantilever arms, battery cases, and solar panel brackets, are included with these light poles. We also accommodate cantilever arm lengths and light pole heights that are specific to each project. In summary, the Leaf system solar-powered street lamps from ZGSM are ideally suited for regions characterized by underdeveloped power infrastructure and ample sunlight.

Solar Powered Street Lamp
Integrated Solar Street Light
Series No Series Leaf solar
Power 20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W
Efficacy 155-180lm/W
Input Voltage DC 12/24V
Battery Spec 230WH-1843WH or customized
Solar Panel Spec 50-400W or customized
IP Rating IP66
IK Rating IK10
Beam Angle Type II
Mounting Option Side Entry


Solar-powered street lights now predominantly employ LED light sources. Following years of technological advancement, the LED light has achieved a stable lifespan. A high-quality LED light has the potential to operate for over ten years, or 50,000 hours, at a rate of 10 hours per day.
