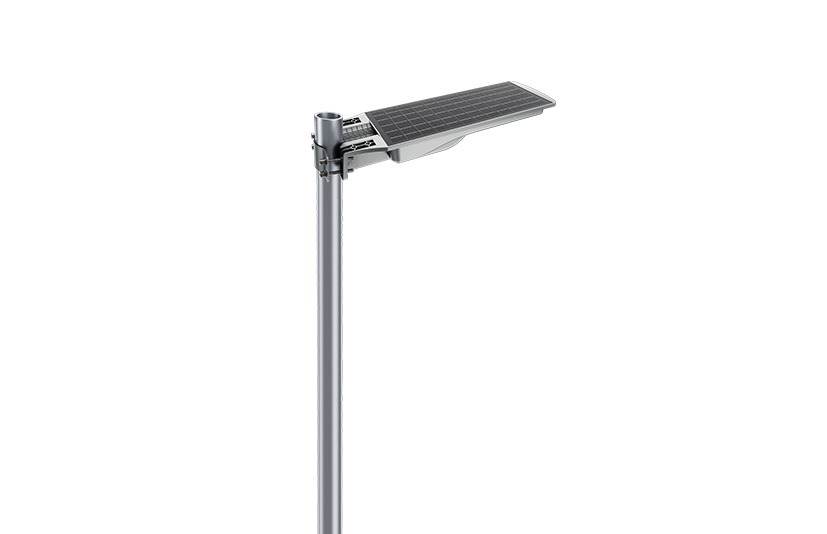

PV4 Series Integrated Solar Street Light

PV4 is a brand-new, internally designed, LED solar street light featuring a streamlined profile, increased conversion efficiency, and a price point that is extremely competitive.

  • Power: 10W, 20W, 30W, 50W
  • All-in-one design
  • Multiple installation modes are supported
  • High efficiency MPPT controller, charging efficiency up to 92%
  • Intelligent battery management, prolong the service life of lithium battery
  • Microwave induction control, realize intelligent power saving mode
  • Perfect protection function, Undervoltage, overcharge protection
  • Infrared wireless remote control, adjust the working mode easily
Specification_PV4 Series Integrated Solar Street Light
Installation Manual_PV4 Series Integrated Solar Street Light

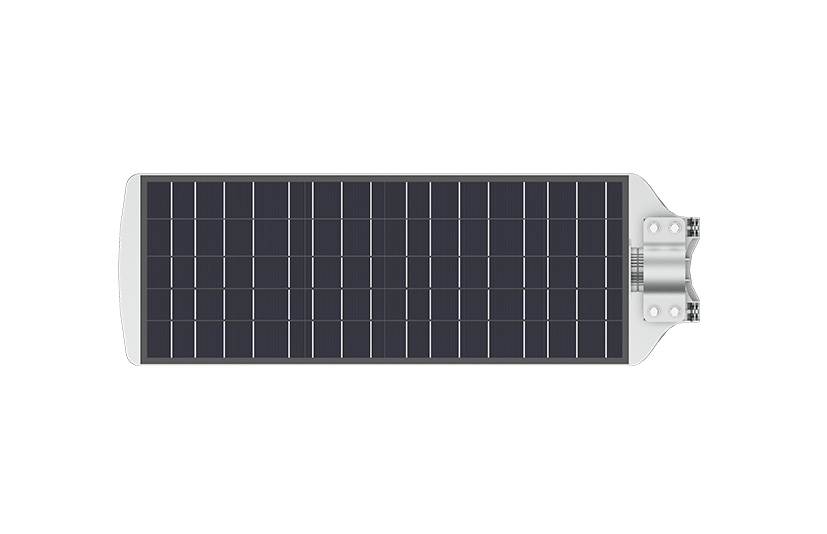

Monocrystalline photovoltaic solar panels with an efficiency of 200 lm/w are capable of being vertically, horizontally, or wall-mounted to provide consumers with superior product benefits.

Integrated Solar Street Light
Integrated Solar Street Light
Series No Series PV4
Power 10W, 20W, 30W, 50W
Efficacy 200lm/W
Input Voltage DC 12V
Battery Spec LiFePO4 64WH/128WH/192WH/268WH
Solar Panel Spec Monocrystalline 12W/22W/35W/55W
IP Rating IP65
IK Rating IK08
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>800
Operating Temperature -40°C to + 50°CC
Beam Angle Type I
Mounting Option Post Top, Side Entry, Wall mounted
Warranty 2 Years
Certification CE, ROHS, LM80, TM-21
Control PIR sensor, Timer dimming, Daylight sensor


Integrated solar street lights are a distinct category of street illumination that derives its energy from solar sources. They are incorporated devices that comprise a solar panel, a battery, and a light.
