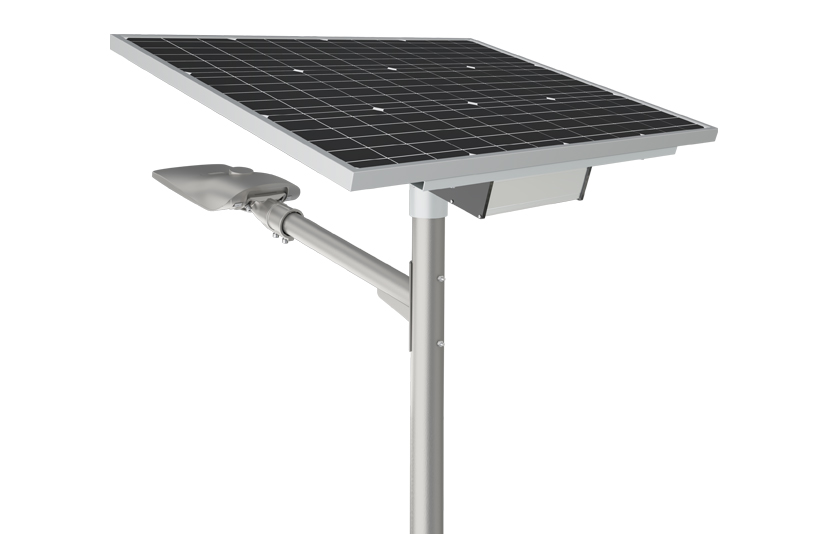

Falcon Series Solar Powered Street Light

Utilizing the most recent high-efficiency LED street lamps from the Falcon Series (up to 170lm/W), solar powered street light from the Falcon Series offer an exceptional lumen output, enduring stability, and a magnificent appearance.

  • Wide power range: 20W~150W
  • High Lumen output up to 170lm/w
  • Monocrystalline silicon solar panels with efficiency of 23%
  • Smart MPPT controller realizes intelligent control of lamps
  • High end battery to prolong the lifetime of the whole luminaire
  • Capacity of panels and batteries can be customized
  • Long lifespan with L70>100000hrs
  • Multiple lighting control options are available, e.g. photocell, timer dimming
Specification_Falcon Series Solar Powered Street Light
Installation Manual_Falcon Series Solar Powered Street Light

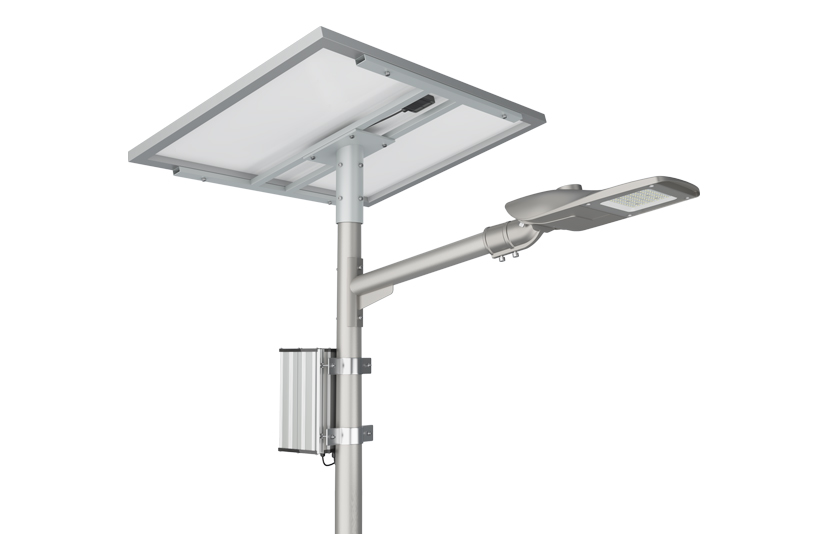

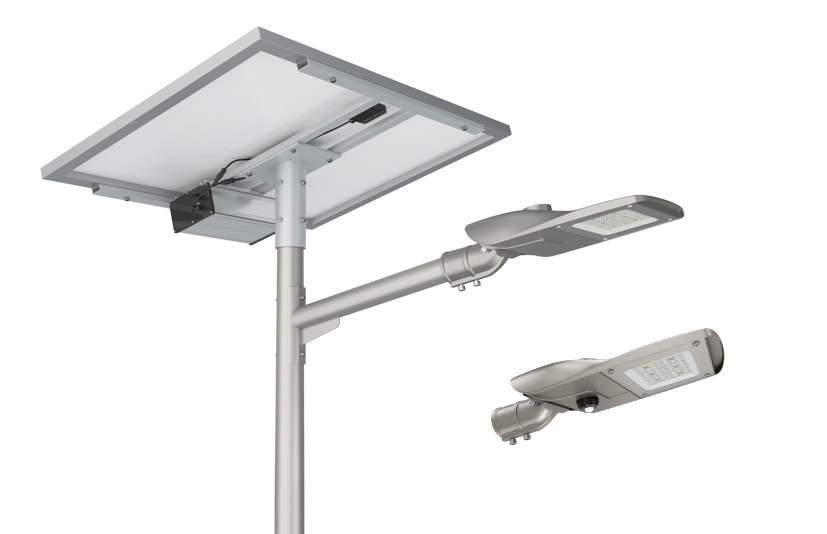

A lithium battery and mono solar panels are utilized in conjunction with Falcon series solar street led lights to guarantee the longevity and high efficiency of the solar street light system. The Falcon split solar street light controller effectively safeguards the lithium battery pack against potential harm caused by an excessively high or low output voltage by intelligently monitoring the battery voltage. In doing so, the battery’s lifespan is extended. Despite its simple design, the Falcon split solar street light system provides exceptional efficacy. It is simple to maintain and stable. Offer a three-year warranty on the solar street lighting system in its entirety.

Solar Powered Street Light
Integrated Solar Street Light
Series No Series Falcon
Power 30W, 50W, 60W, 80W, 90W, 100W, 120W, 150W
Efficacy 170lm/W
Input Voltage DC 12/24V
Battery Spec 230WH-1843WH or customized
Solar Panel Spec 50-400W or customized
IP Rating IP66
IK Rating IK10
Beam Angle Type II, Type III
Mounting Option Side Entry


Without relying on conventional grid electricity, LED solar street lights are an excellent way to illuminate a roadway, street, or highway. Consequently, the implementation of solar LED street lighting can lead to financial savings in installation, elimination of the requirement for extensive wiring, and reductions in long-term maintenance and project expenses.
